Water radiators with silicon heat accumulation panels
The perfect combination: Dual-Kherr®+ Star Deutsch water steel panel.
Reduced consumption: Water heat acumulation together with Dual-Kherr® heat acumulation panel will maintain the room temperature for longer, reducing the boiler or heat pump working performance.
Increased comfort. Due to the additional Dual-Kherr® panel, H2O inertia radiators achieve a temperature more stable in the room. Temperature oscillations are avoided and consumption decreases.
- High quality steel housing.
- External DUAL-KHERR heat accumulation panel.
- Modern design to fit in any ambient and decor.
- Increase of radiation and thermal confort.
- Decrease in boiler consumption.
- Life time of heating installation is improved.
- Compact size.
- German water engineering.
Comfort
Efficiency
Thermal Inertia
- Valve is included in the steel panels.
- 6 x 1/2" water connections.
- Improved internal water flow and uniform heat.
- Includes 3 x water connection caps.
- Includes 1 air vent.
- Includes all the required for wall installation.
- Suitable for single pipe and double pipe installations.
| Square | ||
|---|---|---|
| Model | Outputs | Weight |

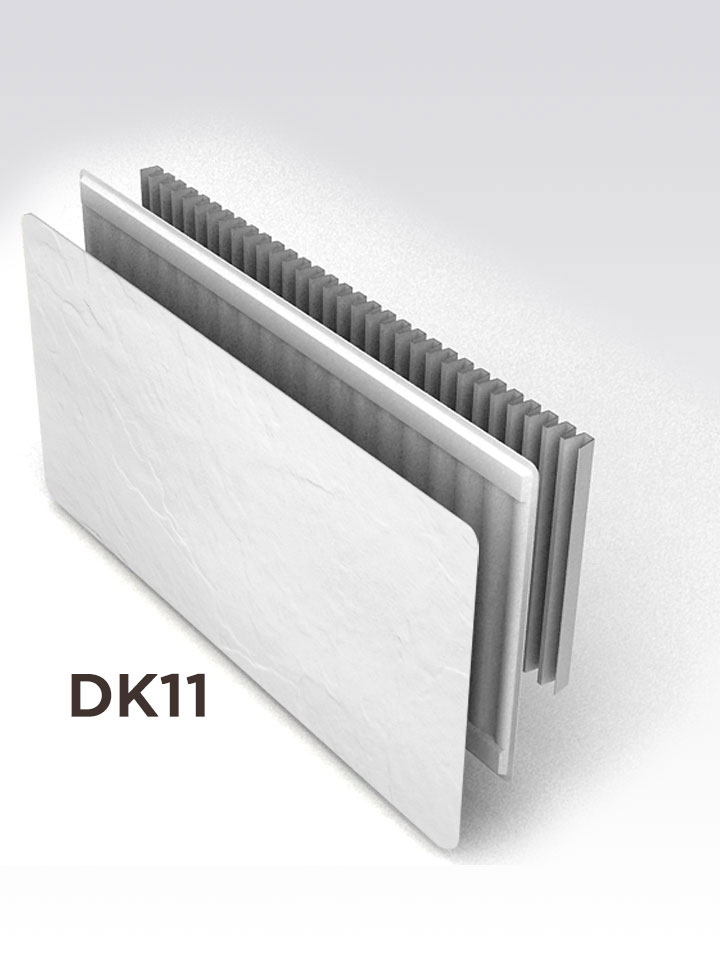

| DK11 | 500 W | 14,21 kg |
| DK21 | 750 W | 19,21 kg |

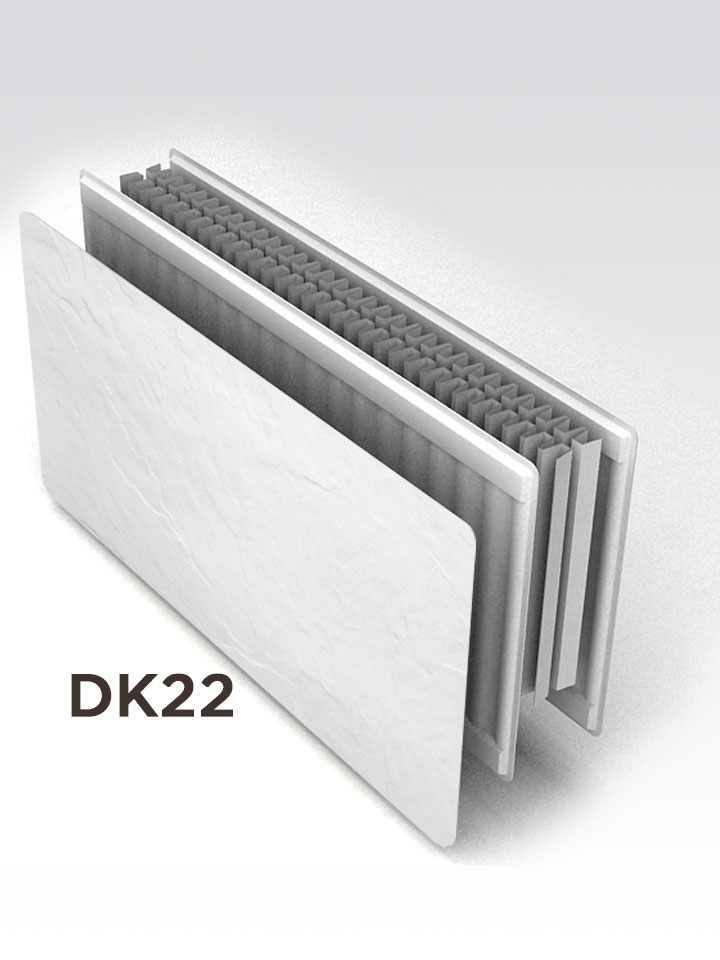

| DK22 | 900 W | 21,60 kg |

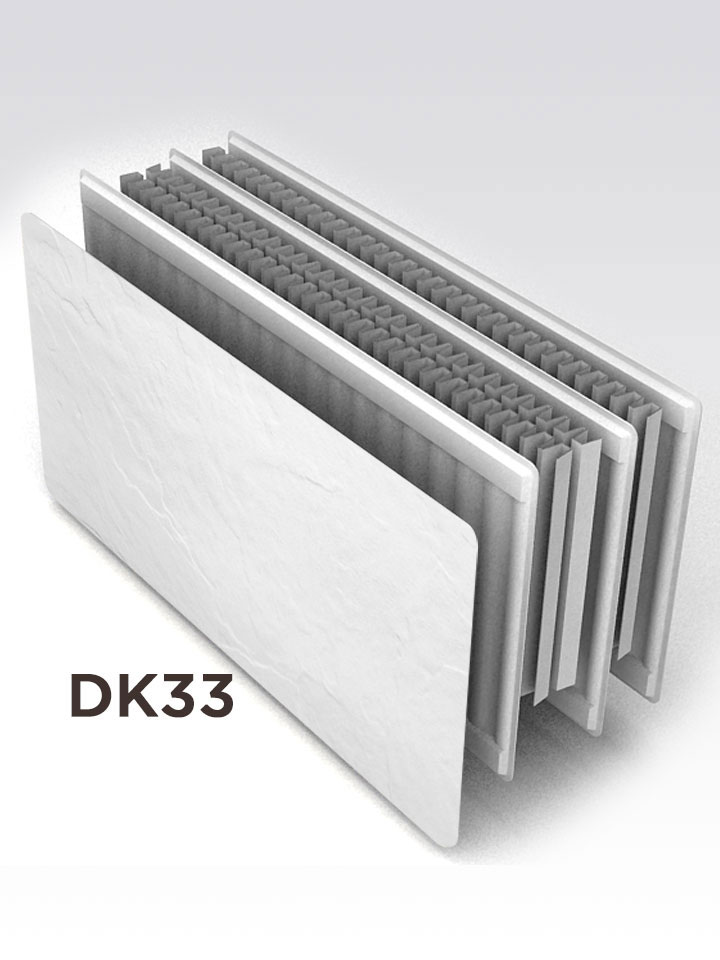

| DK33 | 1300 W | 28,21 kg |
| Horizontal | ||
|---|---|---|
| Model | Outputs | Weight |

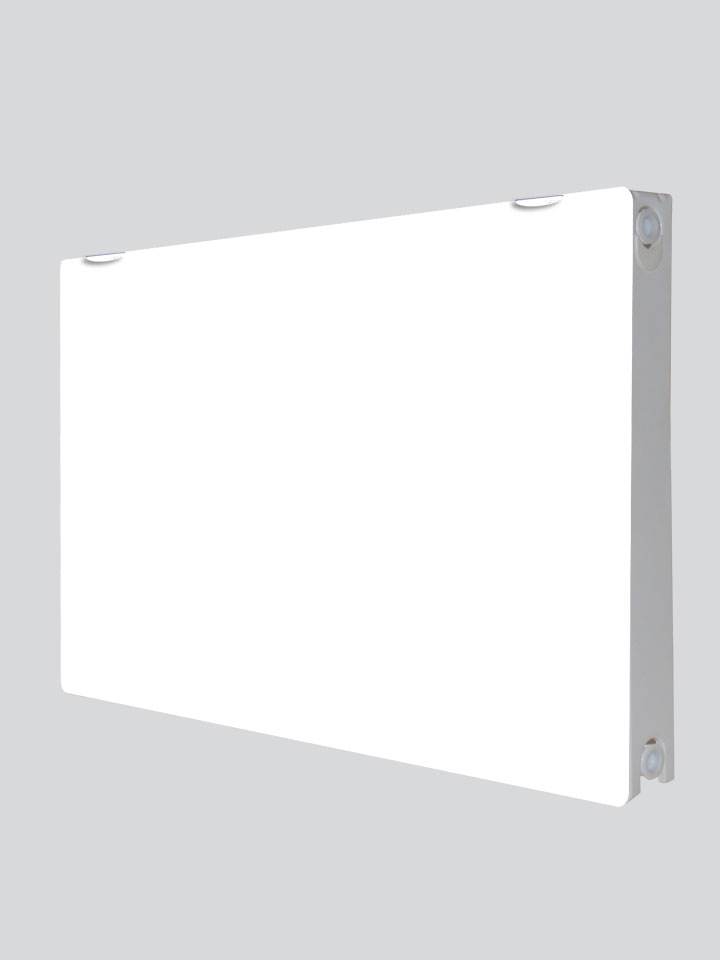

| DK11 | 1000 W | 29,42 kg |
| DK21 | 1500 W | 39,43 kg |
| DK22 | 1800 W | 43,33 kg |
| DK33 | 2500 W | 57,43 kg |
| Vertical | ||
|---|---|---|
| Model | Outputs | Weight |

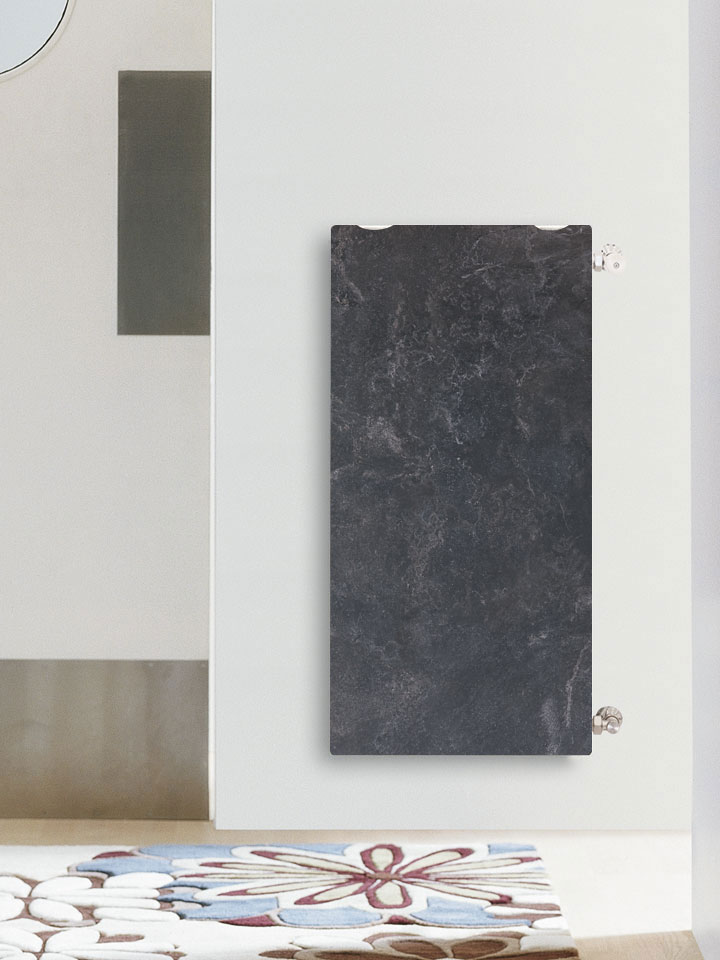

| DK11 | 850 W | 27,90 kg |
| DK21 | 1200 W | 36,85 kg |
| DK22 | 1500 W | 40,60 kg |
| DK33 | 2100 W | 43,25 kg |
White Limestone

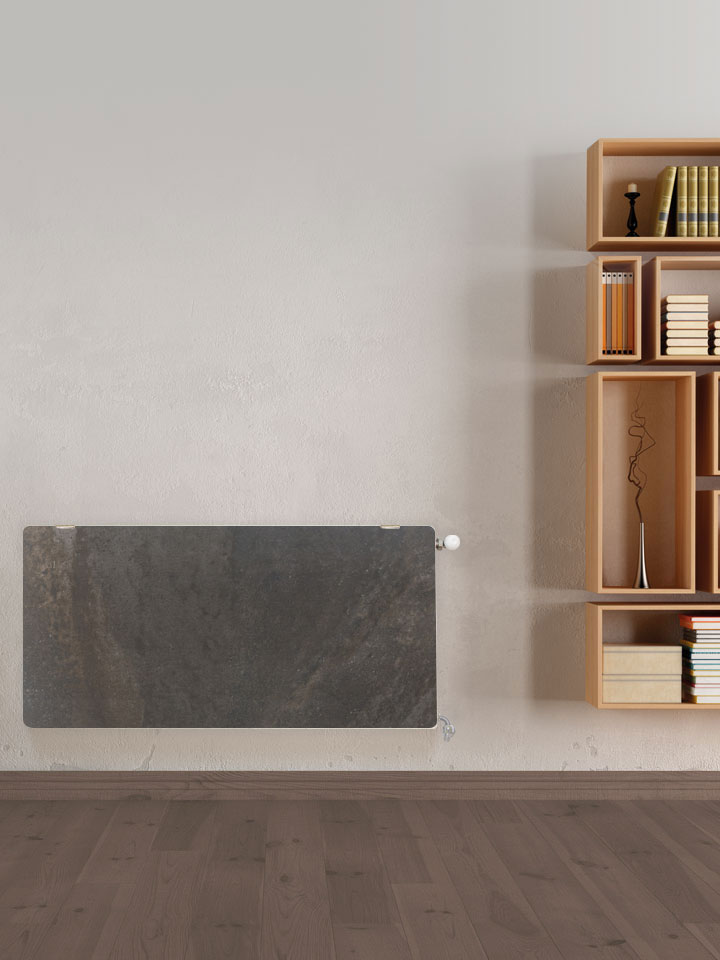

Terra Limestone
White Quartz
Light Natura
Dark Natura
